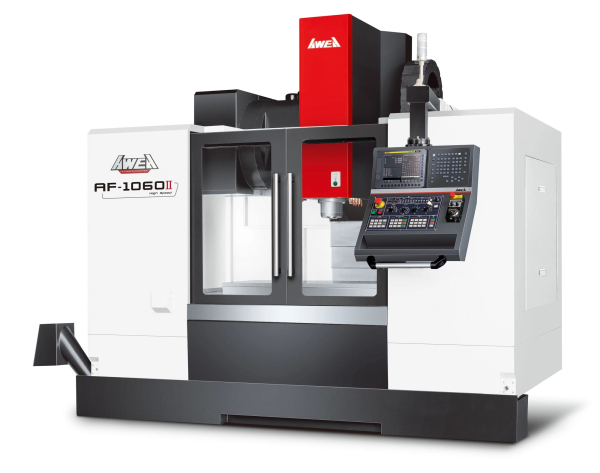

Awea AF Series VMC
Features
- High Speed, High Performance
- BT40 or BT50
- Belt, Gear Box or Direct drive Spindles
- Choice of latest Fanuc, Heidenhain or Siemens control systems
High-Performance Vertical Machining Centres
The AWEA AF-II Series of Vertical Machining Centres sets the industry standard for high-performance machining, blending exceptional rigidity, precision, and speed. Engineered for reliability in demanding environments, the AF-II Series offers outstanding capabilities suited for precision parts manufacturing, mould-making, and heavy-duty cutting applications.
Key Benefits & Features:
✅ Exceptional Structural Rigidity- Meehanite cast iron bed and Y-shaped column design ensure maximum rigidity and dynamic accuracy.
- Advanced Finite Element Analysis (FEM) provides an optimal machine structure with minimized vibration and superior cutting stability.
- Belt-drive (10,000 rpm), Direct-drive (10,000–15,000 rpm), and Gear-drive (6,000–8,000 rpm) spindle configurations available.
- High torque gear spindle options delivering up to 382 Nm torque for demanding heavy cutting.
- Integrated spindle oil cooling system minimises thermal deformation and enhances precision.
- Standard 24-tool arm-type Automatic Tool Changer (ATC) ensures rapid tool changes, minimising downtime and maximising productivity.
- High-capacity magazine options available (up to 60 tools).
Model Range & Specifications:
- X-axis Travel: 650 mm to 1,800 mm
- Y-axis Travel: 510 mm to 800 mm
- Z-axis Travel: 510 mm to 800 mm
- Table Load: Up to 1,800 kg
- Spindle Speeds: Up to 15,000 rpm
- Feed Rates: Rapid traverse up to 48 m/min
Advanced Machining Capability:
- High precision linear guideways for efficient movement and superior accuracy.
- Optional compound guideway design (linear guideways combined with box ways on Z-axis) tailored for heavy cutting scenarios.
- Intelligent chip removal systems and high-pressure coolant options to maintain productivity.
Why Choose the AWEA AF-II Series from TDT Machine Tools?
✔ Robust machine build ensuring reliable, long-term performance. ✔ Versatile configurations tailored to precision and heavy-duty machining. ✔ Local support and expertise provided by TDT Machine Tools, the UK’s trusted partner in CNC machining technology.Ideal Applications:
- High-precision components
- Automotive parts (manifolds, gearboxes)
- Precision mould and die manufacturing
- Heavy engineering and general job-shop machining
Technical Snapshot:
| Feature | Specification |
|---|---|
| Spindle Options | BT40/BT50 – Belt/Direct/Gear-drive |
| Tool Capacity | 24 standard, up to 60 optional |
| Max Cutting Feed Rate | 15 m/min |
| Positioning Accuracy | ±0.008 mm |
| Rapid Traverse | Up to 48 m/min |
| Max Table Load | 1,800 kg |
Transform Your Machining Capabilities Today
Invest in the future of your production with the AWEA AF-II Series, exclusively from TDT Machine Tools. 📞 Contact our sales specialists on 01788 570411 🔖 #thebigmachinecompanyEnquire about Awea AF Series VMC
