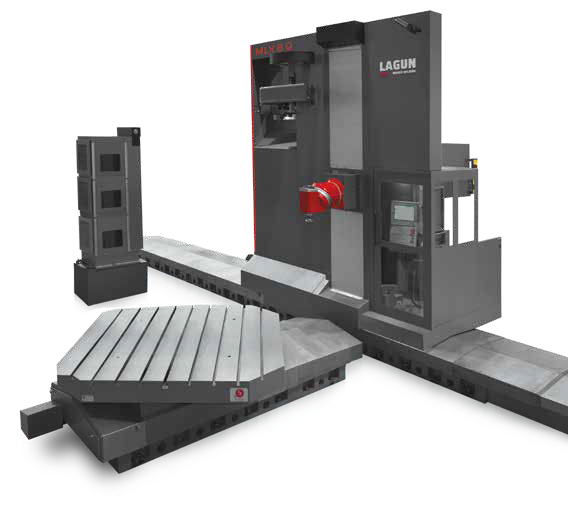

Lagun MLX Q Floor Type Milling Machine (Quill)
Enquire Now
Floor type milling machine with automatic head change and quill
The LAGUN MLX machine is a moving column milling machine with Automatic Head Change.
Z dimension: 3000 (and exceptionally Z: 3500 mm), Y: 1500.
· With built-in Ø 130 quill system. And W-travel: 800 mm.
· With a high-performance motor power of: 52 Kw (S1); Max. torque: 3,200 Nm (S6).
· Linear position encoder for the W-axis.
· Precision of positioning: 0.001 mm.
· Positioning accuracy of C-axis: +/- 3”.
· With a system integrated in the ram of the machine with high precision elements and temperature control.
· Automatic main motor cooling system.
· Automatic cooling system for the quill housing.
· Automatic cooling system of the 2-speed gearbox
