MillTec Workholding
Enquire NowWith MillTec, you have maximum flexibility and productivity

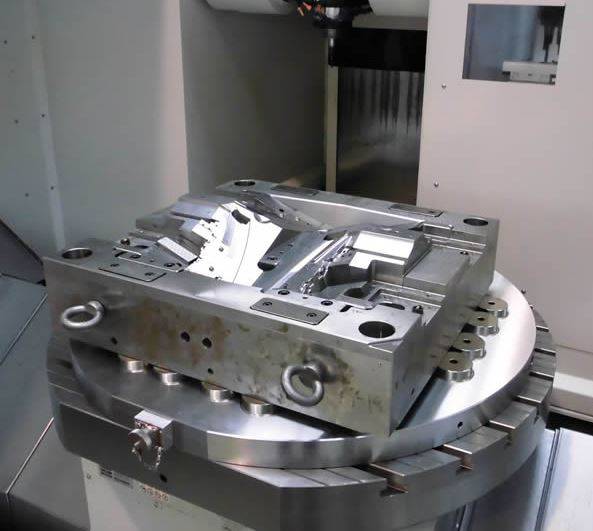

The innovative MillTec magnetic systems for milling are the optimal solution for clamping pieces on milling machines with a vertical or horizontal axis, a gantry, for machining centers, for pallets, squares and cubes of FMS systems.MillTec offers great operational advantages for a dramatic increase in productivity and quality.

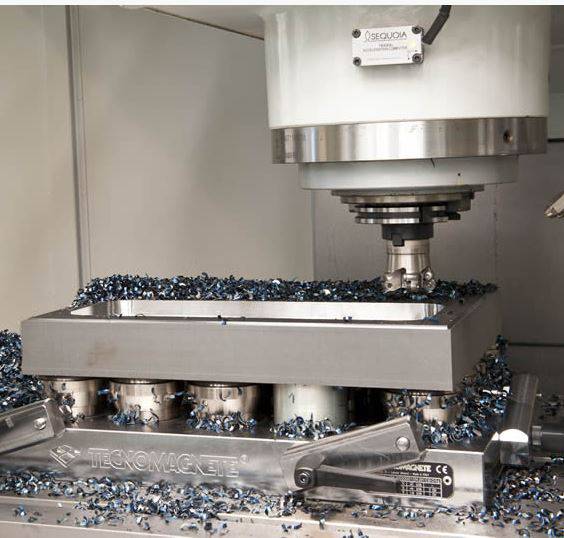

By operating with vices and clamps the workpieces are never completely free and it is necessary to use multiple placements to complete the processing cycle. With MillTec the piece is always free on all 5 faces, allowing the complete machining in a single positioning, improving the working of tools in all operations such as face milling, contouring, through holes and drilling.
With MillTec the clamping force is distributed uniformly over the entire contact surface without any compression and deformation of the piece. The absence of vibration allows higher stock removal, better finishingand more strict manufacturing tolerances.

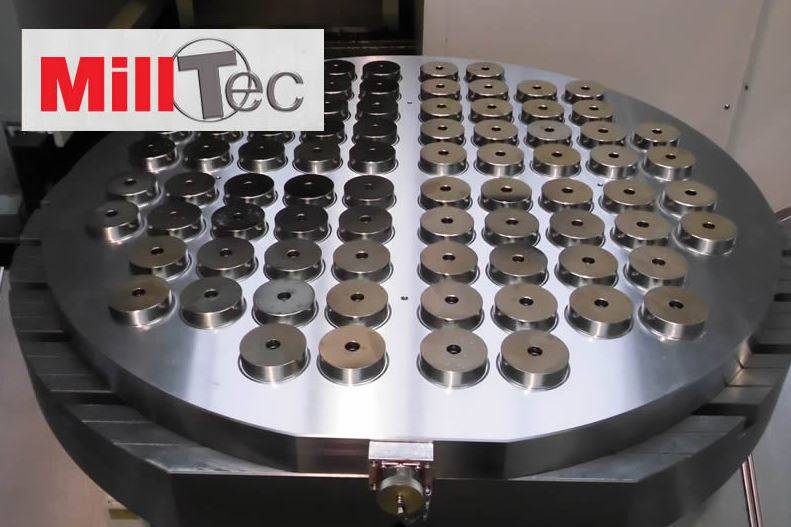

The metal surface is uniform, completely in steel, free from resin sealant, inserts and any containment element. The patent Quadsystem MONOLITE offers a honeycomb structure made from a solid block, which acts as an impenetrable mechanical shield to protect the electrical circuit and the permanent magnets inside.
The poles, made through a core drilling, are integral with the structure and are able to absorb even harsh machining parameters, maintaining absolute stability without bending.
