You Ji YB Flat Bed lathes
Enquire Now
You Ji YB Flat Bed lathes (oil country lathes)
High Rigidity, High Torque, Heavy Duty Cutting
You Ji's horizontal lathes all possess very high rigidity, efficiency and accuracy.
A single flat bed and frame of high grade cast iron provides a flat bed for sturdy support and low centre of gravity that guarantees stability and easy chip removal.

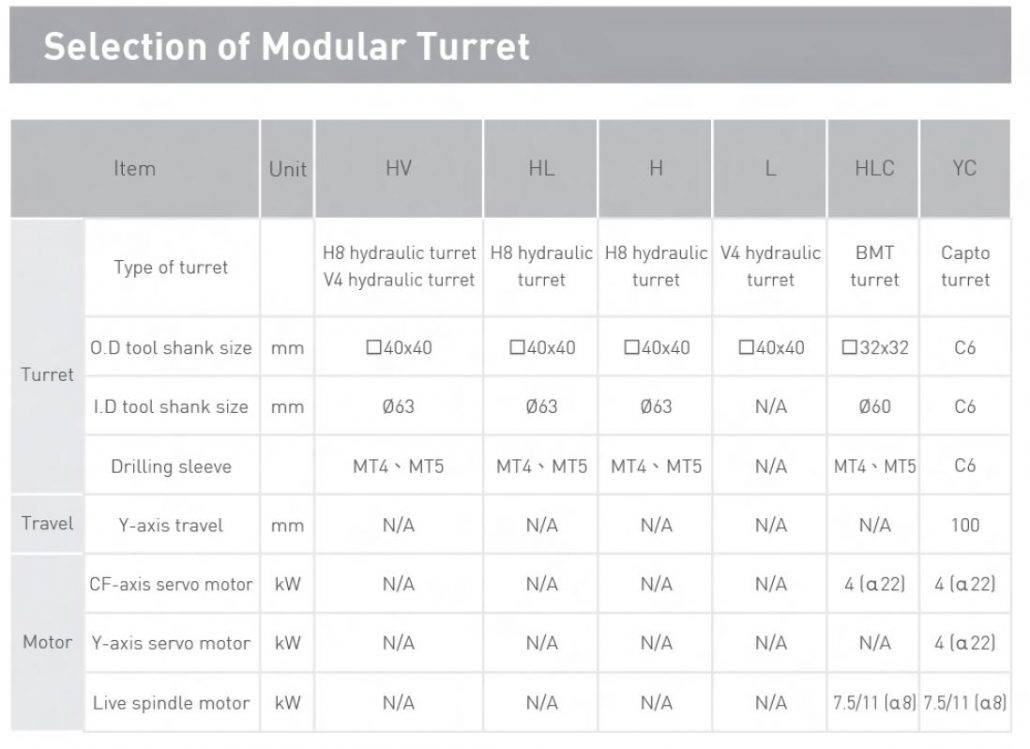

A high precision curved coupling guarantees tool turret accuracy.
• Cross slide is made of Meehanite cast iron to provide stability and precision
• Large size work-piece can be supported by 3 wide span box guide ways and increases radial turning range
• Surface of box guide ways are heat treated and precisely ground incorporating laser calibration to ensure linear precision
• Each axis has Turcite-B coated to reduce the friction factors and enhances feed rate capability
• Z-axis cross slide is driven by twin drive simultaneously to provide the maximum thrust
Headstock and Spindle
• The solid box construction casting provides excellent rigidity for heavy cutting
• Spindle is fitted with double roller bearings and angular contact ball bearings to maintain excellent stability during high speed
• Spindle gear shift is controlled by M-code and shifting automatically
• High grade nickel-chrome alloy steel gears in the headstock are hardened and precision ground
• Auto lubrication unit is fitted to headstock gears and spindle to maintain high accuracy and long machine life
• 4-jaw manual chuck and 3-jaw hydraulic chuck are available
• A second chuck can be mounted on the rear side of the spindle that to achieve the best clamping support while long part machining
